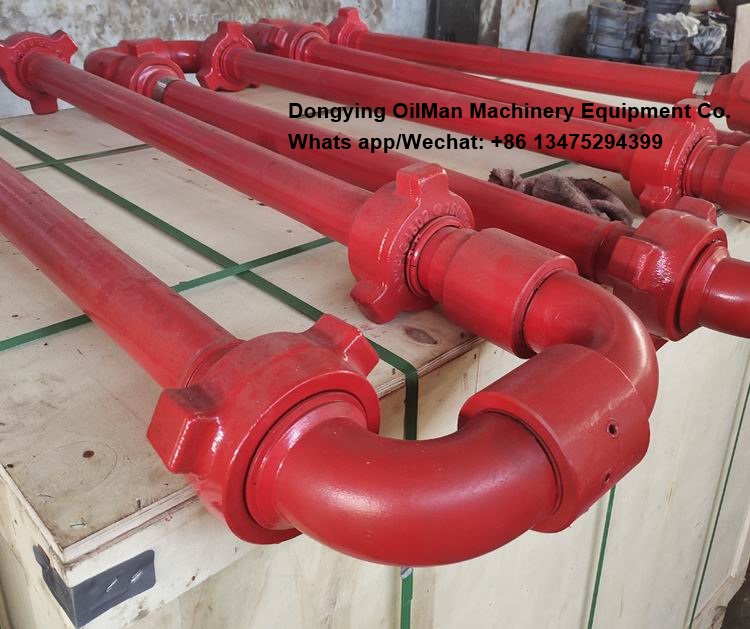

Oilfield High Pressure Cementing Acid Fracturing Hose Loop With Integral Fig1502
Hose Loops are mainly used for transporting fluid in high pressure discharge line, well testing line and cementing slurry line.
Our Hose Loops include long radius type and flexible type.
Long radius type combines long radius swivel joint and integral pup joint, featuring high erosion resistance, less vibration, impact resistance and large flow.
Flexible type has single union connection, featuring excellent seal and rotary performance.
Our Hose Loops are available in both standard service and H2S service, applicable to cementing, fracturing, acidizing and testing lines. Customized design is also available to meet various demand.
Features:
-
Special repair kit is available for quick and inline maintenance.
-
Easy to fold, store and transport.
-
High flexibility, less vibration, impact resistance and large flow
-
Integral hammer union connection is easy for assembly and disassembly.
Specification:
- Working Pressure Scope: 6000-15000psi
- Nominal Size: 1"-4"
- Spec. size: 2”x 10’, 2” x 12’, 3” x 12'
- Working Temperature: -29-121 C°(PU)
- Medium: Standard Trim or H2S
- Standard: API Spec 16C or NACE MR 0175
| specification | Name | Cold working press | Terminal connection type | Buckle model |
| Tr100×12 | Thread sealing hose loops
Integral hose loops
H2S proof hose loops | 42MPa | Tr100×12 | Metric system |
| Tr99×12.7 | 42MPa | Tr99×12.7 | British system |
| 2"×42 | 42MPa | 3.8125-3Stub Acme-2G | fig602 |
| 2"×70 | 70MPa | 3.8125-3Stub Acme-2G | fig1002 |
| 2"×105 | 105MPa | 4.125-3-Acme-2G | fig1502 |
| 3"×42 | 42MPa | 5.375-3Stub Acme-2G | fig602 |
| 3"×70 | 70MPa | 5.375-4-Acme-2G | fig1002 |
| 3"×105 | 105MPa | 5.375-3.5-Acme-2G | fig1502 |
| 4"×42 | 42MPa | 6.25-3Stub Acme-2G | fig602 |
| 4"×70 | 70MPa | 6.25-4-Acme-2G | fig1002 |
| Remark:How to place an order:Integral hose loop-3"×105 -8’ (according to expanded size) |
If any needs, pls contact us freely:
Dongying OilMan Machinery Equipment Co.
Address: North Two Road, Dongying City, Shandong Province, China.
Mob/whats app/we chat:+86 13475294399
*Email: christal@oilmancn.com
