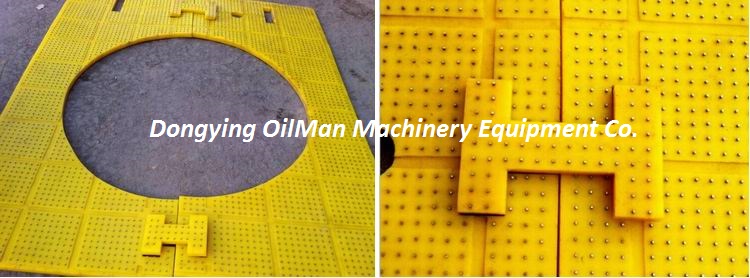

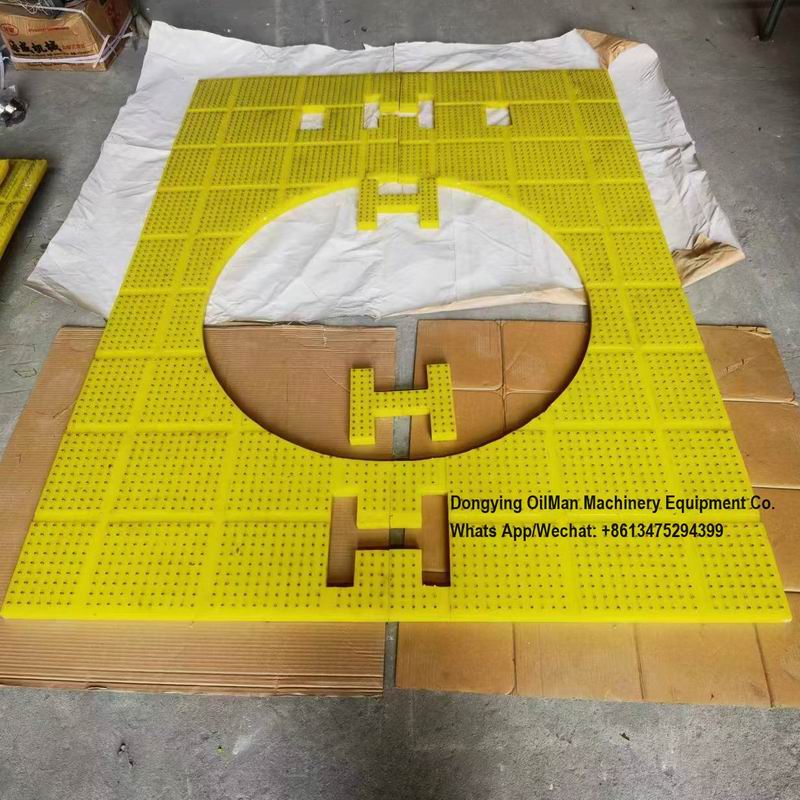

27 1/2" Oil Drilling Equipment Rotary Table Rig Floor Anti-Slip Mats
Drill floors requires an extreme level of safety. Especially securing friction on the deck is a high priority as mud, grease, oil, water, etc, creates a very slippery milieu.
Rig floor/rotary table mats (matting) we manufactured mainly used in oilfield, engineering construction, etc. The rig matting is made of Polyurethane ( PU ) Rubber + Steel Nails. Compared to other common drill mat, such as riffled plate, wood plate, etc, the drill rig mat has great features of anti-slip. The surface of drill rig matting designed with vertical and horizontal arranged sewage notch, the oil fouling and water spots can discharged timely.
Main Features.
1) Available in any color with identified danger zones. ( Yellow, Red color )
2) Aggressive aggregate embedded to create traction enhanced surface.
3) Carton steel or SS nails embedded for added traction.
4) Very durable and resistant to fluids.
5) Channels in the surface allow for fluid run off .
6) Custom service according to on site requirements.
Technical Parameters.
| Break Strength / Mpa | 50 |
| Elongation at Break. % | 550 |
| Hardness (Shore A ) | 93+/- 3 |
| Tearing strength. Kn/m | 105.0 |
| Rebounding. % | 20 |
Size & Spec./ Standard Size
| Rig Size | Length / mm | Width / mm | Dia. Of Center Bore / mm | Thickness / mm |
| ZP 175 | 1690 | 1280 | 780 | 30 |
| ZP205 | 2000 | 1490 | 830 |
| ZP275 | 2100 | 1670 | 1050 |
| ZP375 | 2205 | 1810 | 1290 |
CUSTOM SERVICE IS AVAILABLE.
27 1/2" Oil Drilling Equipment Rotary Table Rig Floor Anti-Slip Mats
